Volumetric flow meter Qmax:2000 l/min IO Link

Article number: 053471

Type: KDDM-2.2

Series: Futura

Type: Flow sensor with graphical display and backlight

Measuring range: 20 - 2000 l/min

Measuring principle: Differential pressure

Measured value display: ls/sec, ls/min, ls/h, ln/sec, ln/min, ln/h,m³/h, gal/h (sele

Medium: Compressed air, Nitrogen, Helium, Argon, Xenon, carbon dioxi

Air quality class: 6:4:4- according to DIN ISO 8573-1:2010 (non-condensing)

Air consumption: Without air consumption

Flow rate accuracy: ±1% full scale, ±3% of actual value at 7 bar and 23 °C

Repeatability span: ±1% full scale, ±3% of actual value at 7 bar and 23 °C

Connection: via wall bracket

Protection class: IP65 according to DIN 40050

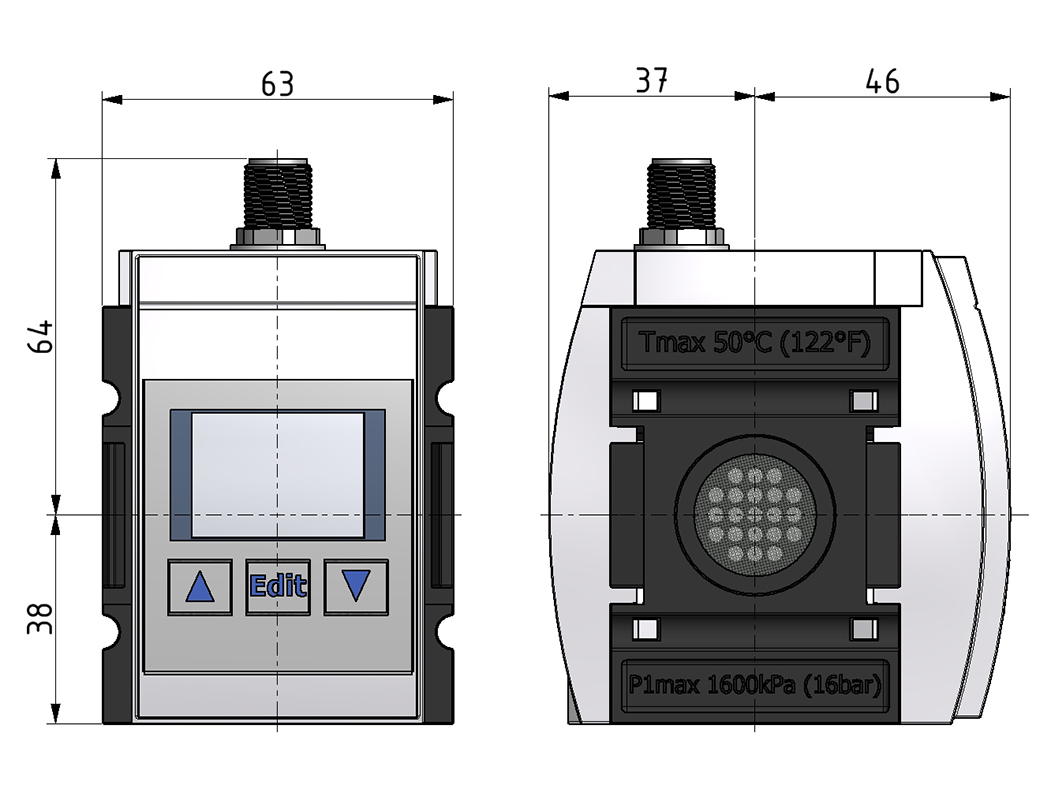

Construction size: BG2

Operating voltage: 24 V (±50%)

Flow: 2000 l/min

No-load current: <75 mA

Reverse polarity protection: Yes, mechanically and electrically

Digital connection type: IO-Link to IEC 61131-9 and IEC 61131-2 (M12)

Input pressure P1 max.: 16 bar

Analog connection type: (4-20 mA, 0-10 V)

Protocol version: Device V 1.1

Medium: Compressed air,Nitrogen, Helium, Argon, Xenon, Carbon dioxid

Profile: Smart sensor profile [digital measuring sensors]

Function classes: Binary data channel (BDC), process data variable (PDV), iden

Temperature area: -10 °C - +50 °C

Communication Mode: COM2 (38,4 kBaud)

SIO mode support: ESA-Satz ist Datenblattrelevant

Port Class: A

Process data width IN: 4 bytes

Process data contents IN: 16 bit flow value 12 bit pressure 2 bit switching states

IO-Link, minimum cycle time: 4 ms

IO-Link, data memory: < 0,5 kbyte to record the flow/pressure for 24 hours

IO-Link, resolution: 4 values per second

Shock resistance: DIN EN60068-2-27

Vibration resistance: DIN EN 60068-2-6

ROHS and Reach: yes

CE-marking: yes

WEEE: yes

Air inlet: Entry from left

elect. connection: M12x1 5-pin

Protection class: IP 65 according to DIN 40050
