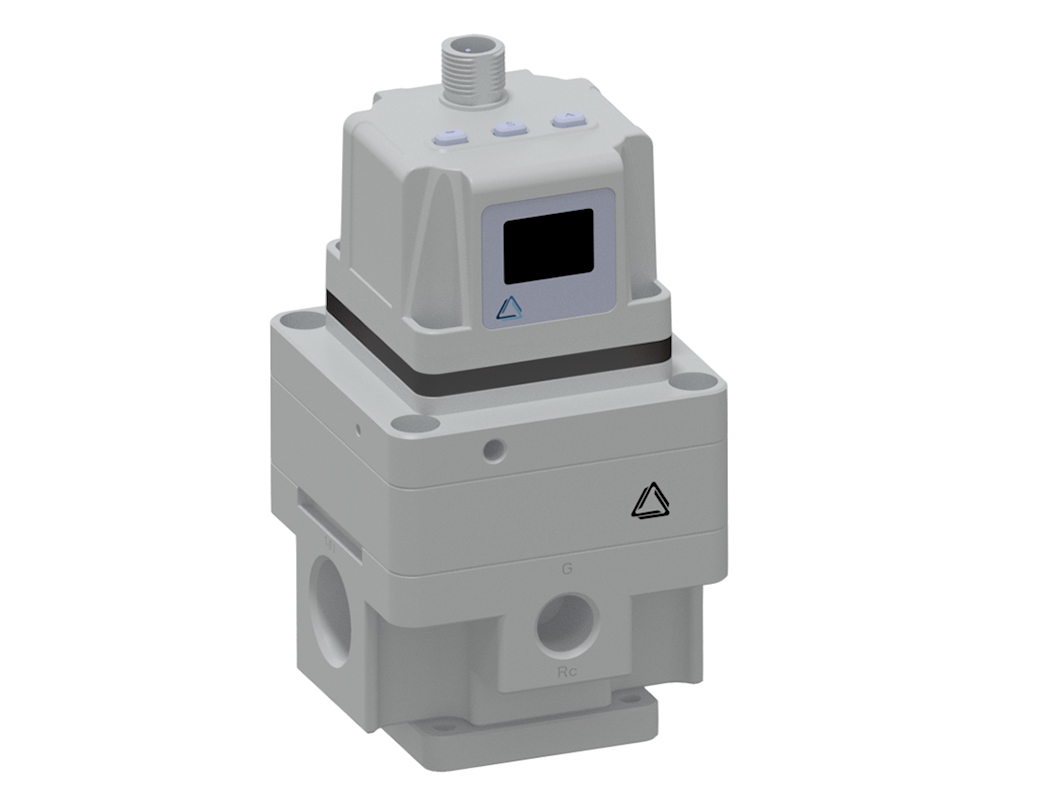

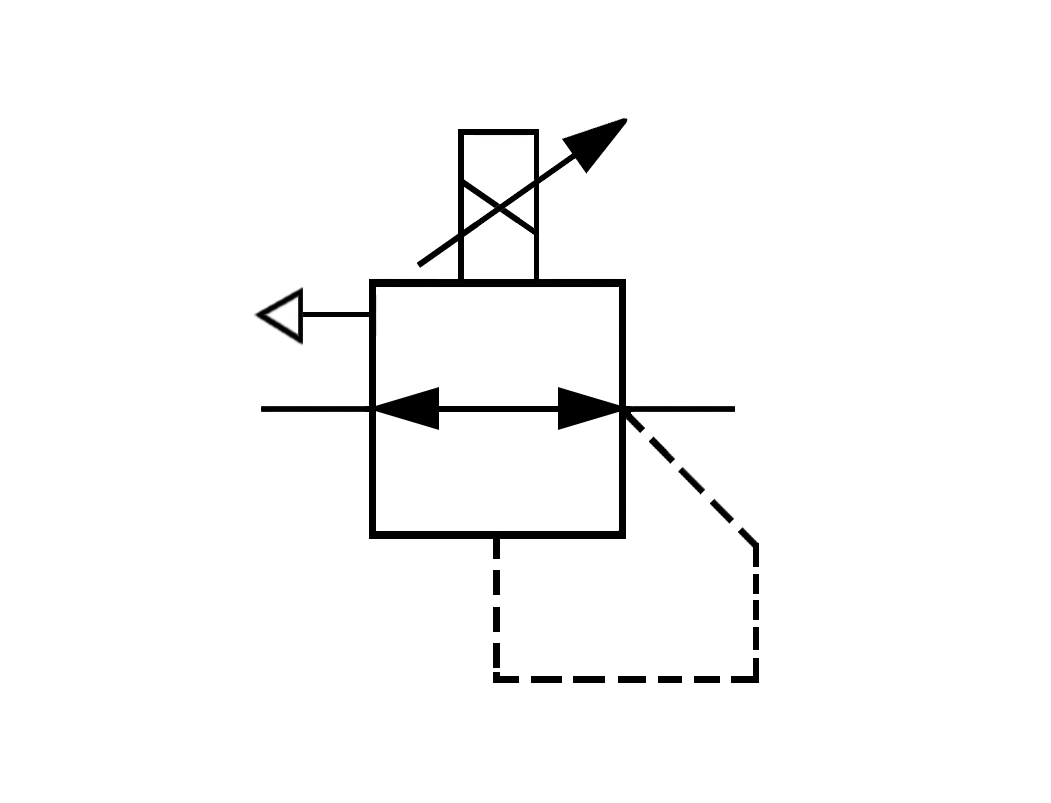

Digital proportional pressure control valve G1/2 0.05-9 bar with high releaving, input/output signal 4-20 mA

Article number: 056200

Type: ER-212

Series: Sonder

Protection class: IP65 according to EN60529

CE-marking: according to EU EMC Directive

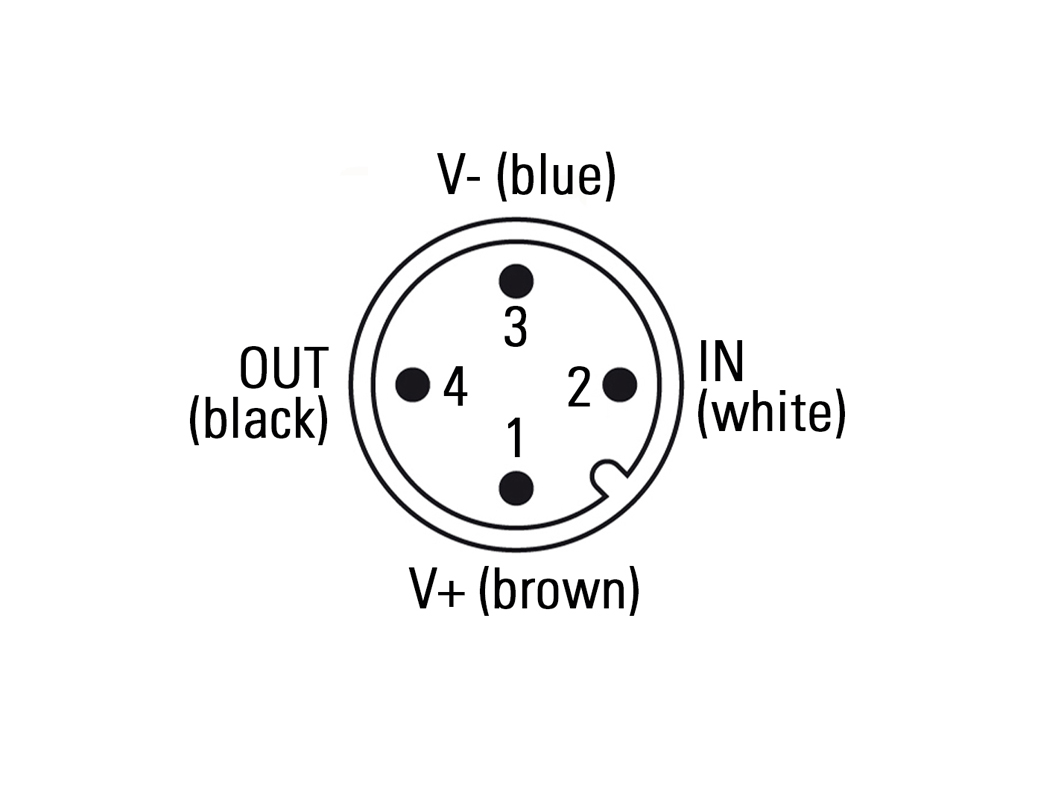

Elect. connection: M12x1, 4-pin

Operating voltage: 4V DC ±10%

Supply voltage: DC 24V ±10%

Cleanliness class: ISO 8573-1:2010: 7:4:4

Input signal: Current DC 4-20 mA

Output signal: Analog DC 4-20 mA

Repeat accuracy: ±0.5% of the full scale value

Hysteresis: 0.5 of the scale value

Temperature coefficient: 2% of full scale / K

Connection: G 1/2

Display accuracy: ±2% of the full scale value

Construction size: BG2

Installation position: Arbitrary

Input pressure P1 max.: 10 bar

Input pressure P1 min.: Set pressure +1 bar

Medium: Filtered and oil-free compressed air, non-aggressive gases

Control range P2 max.: 9 bar

Temperature area: -20°C - +50°C

Air inlet: Entry from left

Locking: Not lockable
