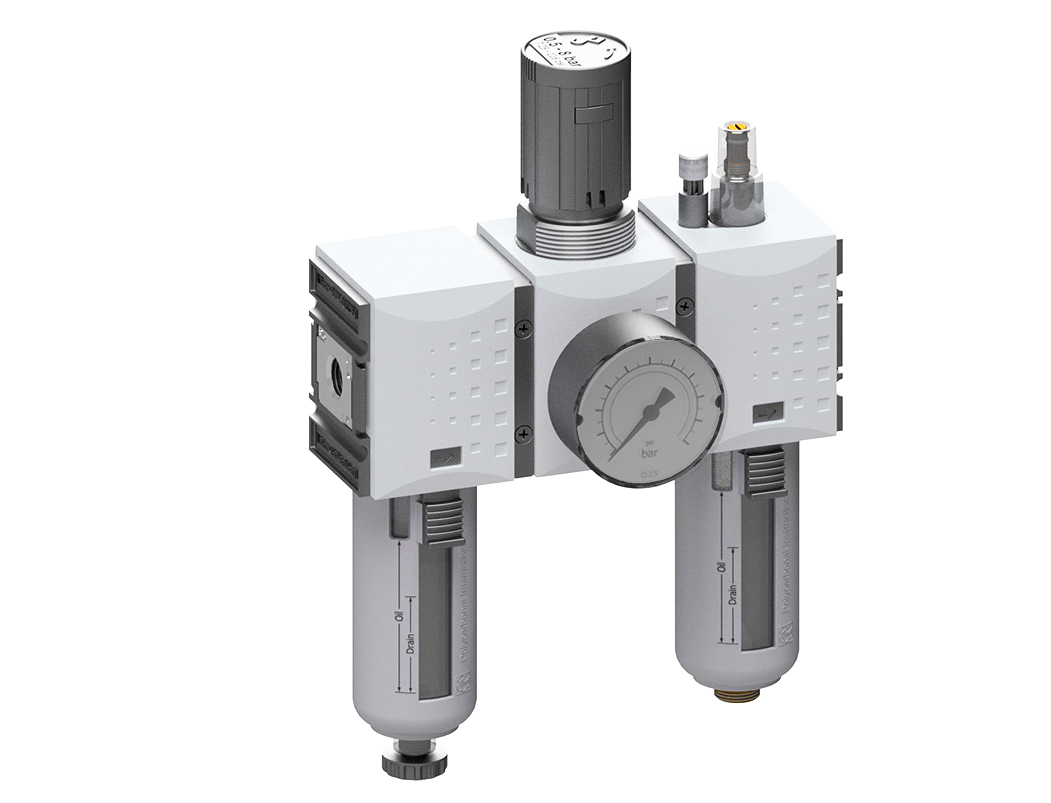

Wartungseinheit G3/8 0,5-16 5µm mit PC-Behälter, Schutzkorb, halbautomatischem Ablass und Manometer G 50.25 R

Article number: 052703

Type: KS3U-138-16-5-PC-B-HA-G

Series: Futura

Connection: G 3/8

Construction size: BG1

Flow: 1750 l/min

Installation position: vertical

Input pressure P1 max.: 16 bar

Medium: Compressed air, neutral gases

Control range P2 max.: 16 bar

Temperature area: -10 °C - +50 °C

Container: PC with protective cage PA

Container volume oiler: 40 cm³

Filter fineness: 5 µm

Condensate drain: Semi-automatic drain (HA)

Pressure gauge: yes

Oil dosing: 1 - 2 d/min

Oil type: CL 32 according to DIN 51517 - ISO VG 32

Panel nut: no
