Available at short notice

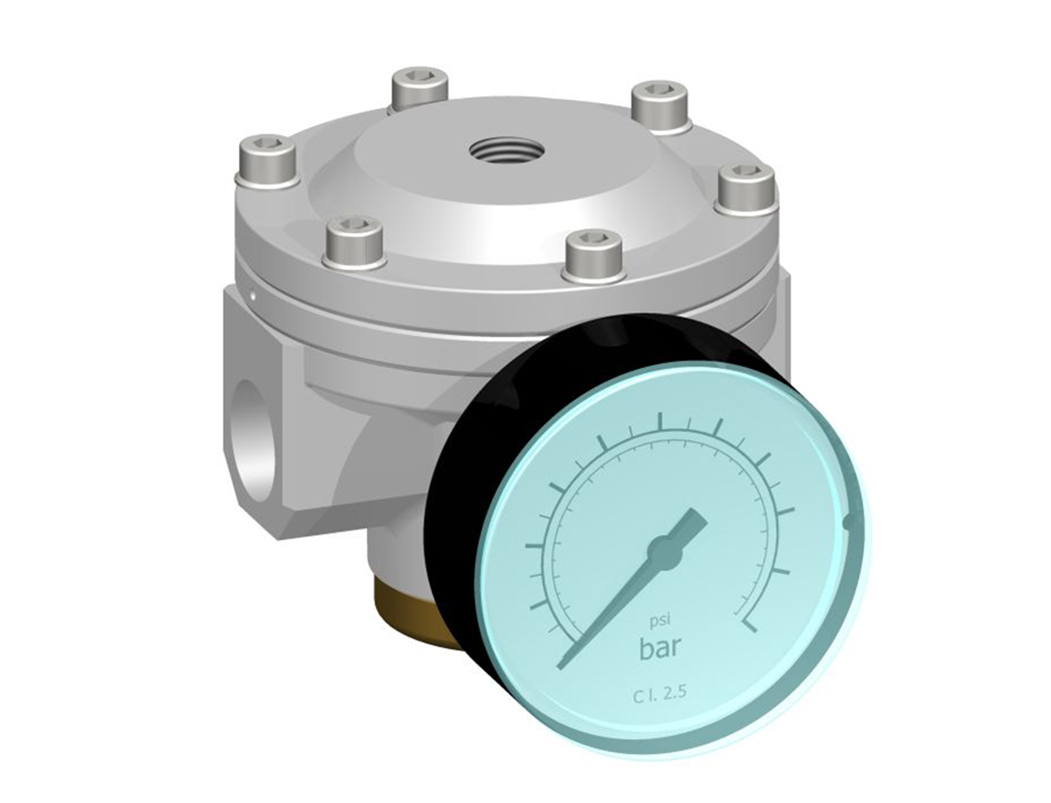

Pressure regulator G1/2 pneumatic pilot operated (G1/4) with gauge G 63.1@@P2: 0,5-16 bar

Pressure regulator G1/2 pneumatic pilot operated (G1/4) with gauge G 63.1@@P2: 0,5-16 bar Pressure regulator G1/2 pneumatic pilot operated (G1/4) with gauge G 63.1@@P2: 0,5-16 bar

Technical data

Article number: 041437

Type: DRI.33-G

Series: Standard

Connection: G 1/2

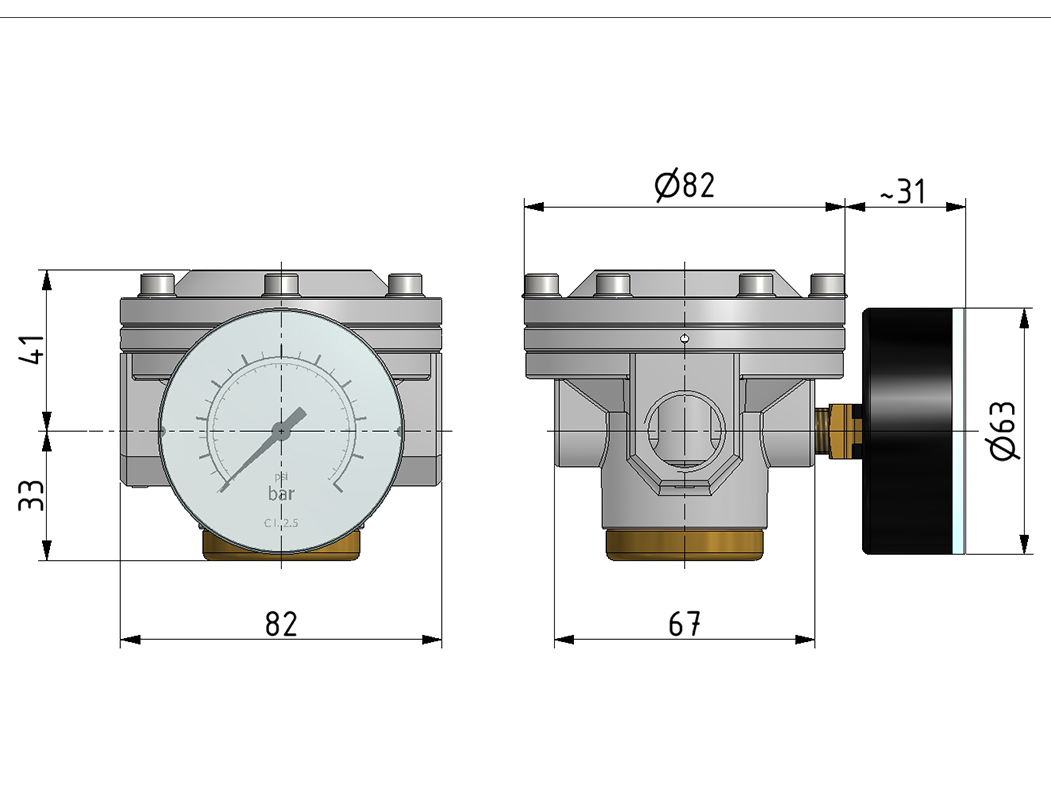

Construction size: BG3

Flow: 5800 l/min

Input pressure P1 max.: 25 bar

Medium: Compressed air, neutral gases

Control range P2 max.: 16 bar

Temperature area: -10 °C - +80 °C

Continuous P supply: no

I-Controlled: yes

Pressure gauge: yes

Panel nut: no

Flow diagram

Flow diagram

Symbol

Symbols

Hysteresis

Hysteresis

Venting characteristics

Venting characteristics

Example of use

Example of use
