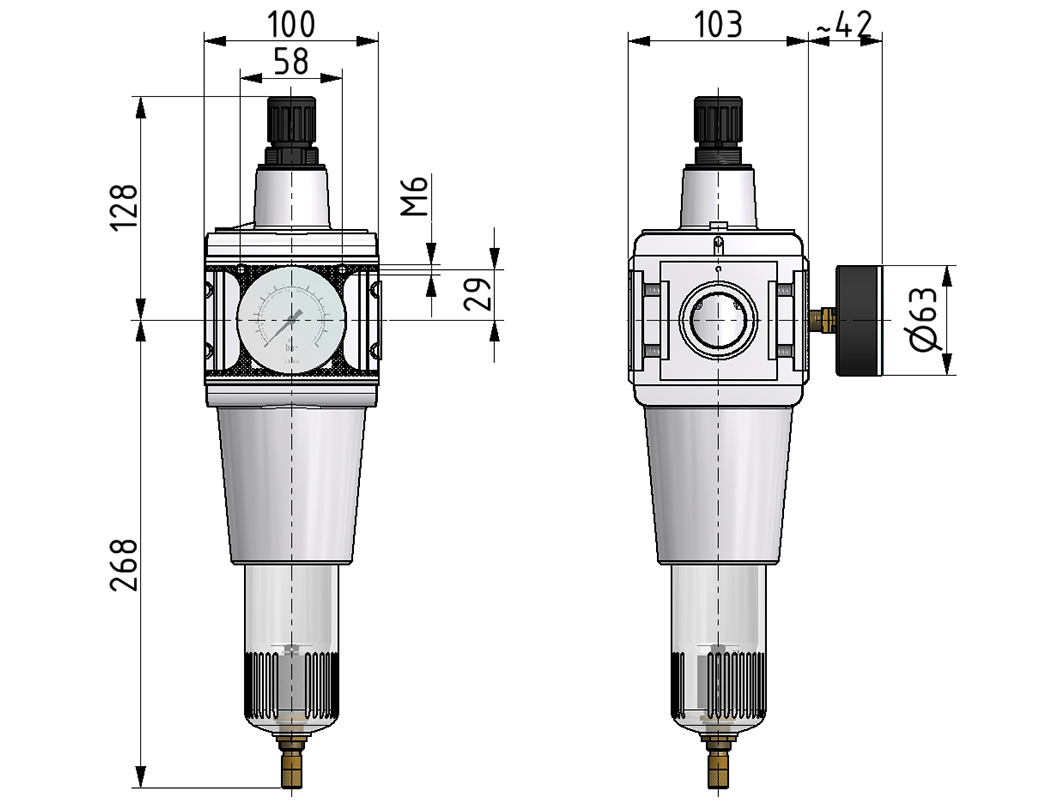

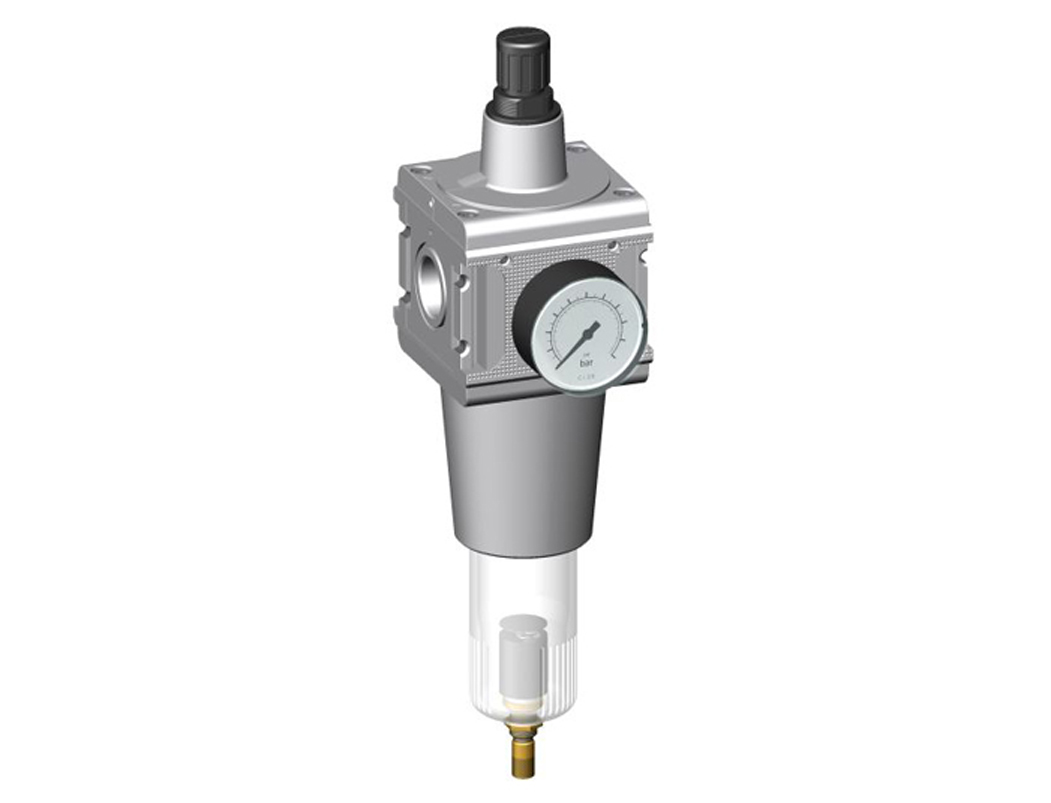

Filter regulator G1 0,5-16 40µm with PC bowl, automatic drain and gauge G 63.25 R (valve seat DR.06-51)

Article number: 041389

Type: C.55-16-40-PC-AM-G

Series: Multi-Fix

Connection: G 1

Construction size: BG5

Flow: 15000 l/min

Installation position: vertical

Input pressure P1 max.: 16 bar

Medium: Compressed air, neutral gases

Control range P2 max.: 16 bar

Temperature area: -10 °C - +60 °C

Container: PC

Filter fineness: 40 µm

Condensate drain: Fully automatic drain

Air inlet: Entry from left

Pressure gauge: yes

Panel nut: no
