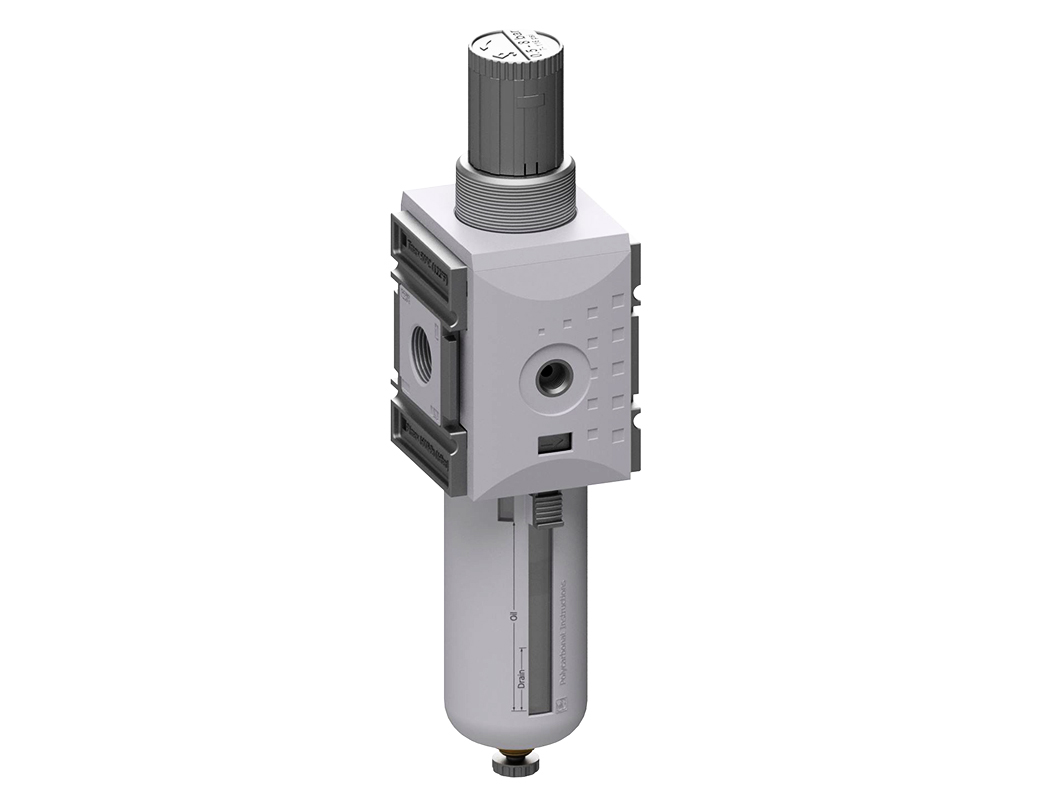

Filter regulator G1 0,5-8 5µm with PC bowl, bowl guard and semi automatic drain

Article number: 035176

Type: KFRG-41-8-5-PC-B-HA

Series: Futura

Connection: G 1

Construction size: BG4

Flow: 13000 l/min

Installation position: vertical

Input pressure P1 max.: 16 bar

Medium: Compressed air, neutral gases

Control range P2 max.: 8 bar

Temperature area: -10 °C - +50 °C

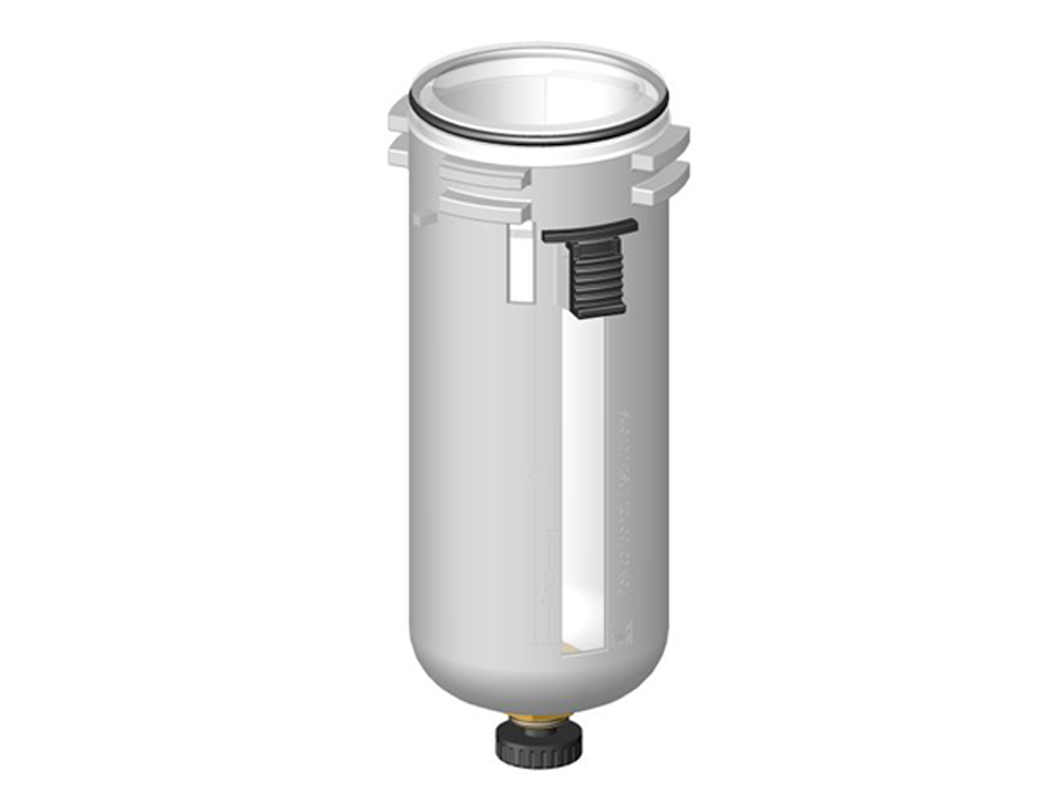

Container: PC with protective cage PA

Intrinsic air consumption: max. 1,5 l/min

Filter fineness: 5 µm

Condensate drain: Semi-automatic drain (HA)

Air inlet: Entry from left

Pressure gauge: no

Panel nut: no

Locking: Lockable with mortise lock or padlock
