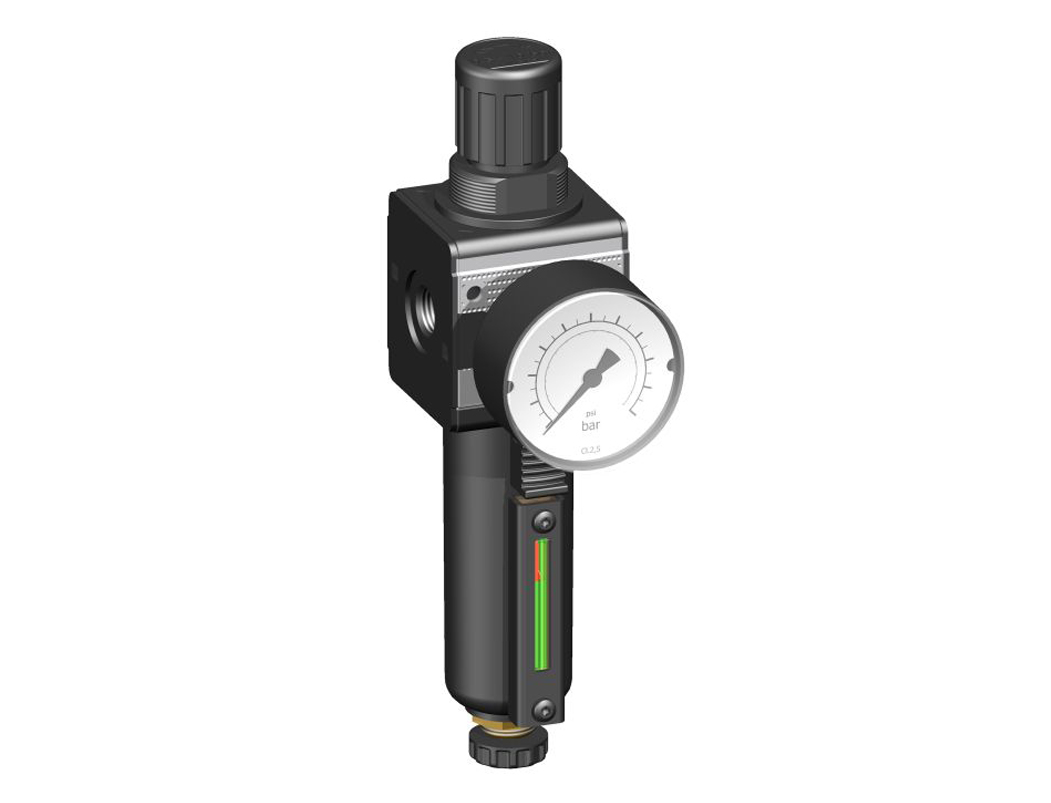

Filter regulator G1/4 0,5-10 5µm with metal bowl/visual display, semi automatic drain and gauge G 50.16 R

Article number: 033754

Type: C.11-10-5-H-HA-G

Series: Multi-Fix

Connection: G 1/4

Construction size: BG1

Flow: 1600 l/min

Installation position: vertical

Input pressure P1 max.: 16 bar

Medium: Compressed air, neutral gases

Control range P2 max.: 10 bar

Temperature area: -10 °C - +60 °C

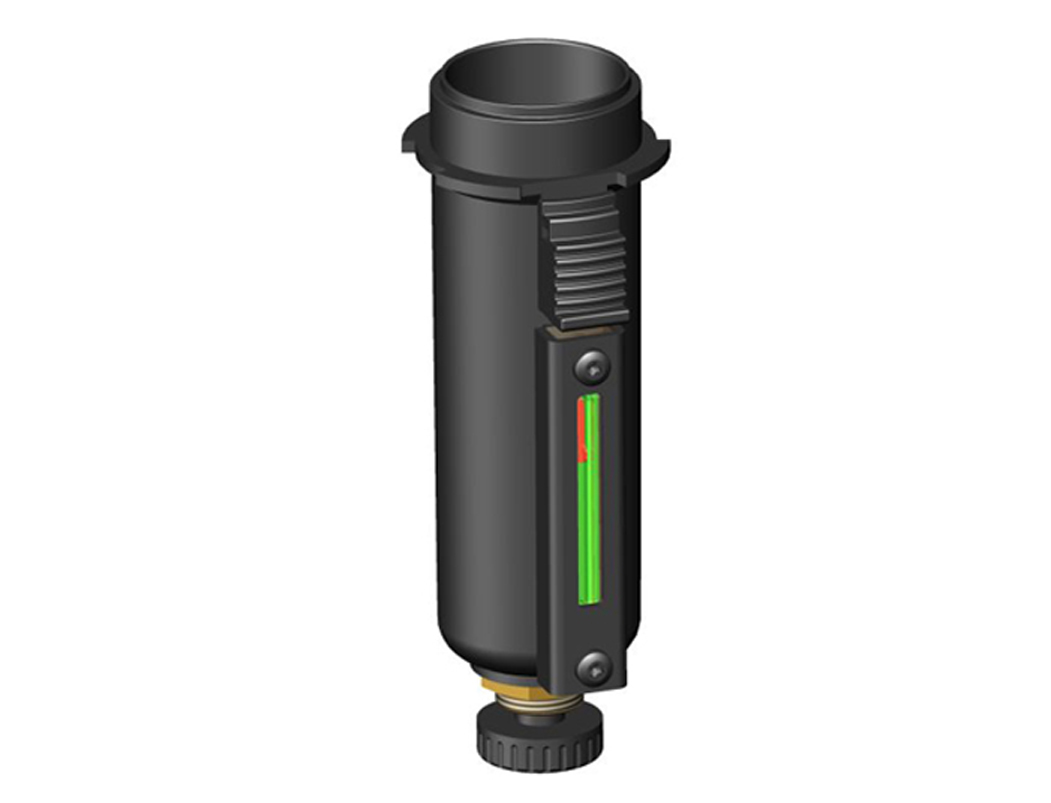

Container: Metal with visual display

Filter fineness: 5 µm

Condensate drain: Semi-automatic drain (HA)

Air inlet: Entry from left

Pressure gauge: yes

Panel nut: no
