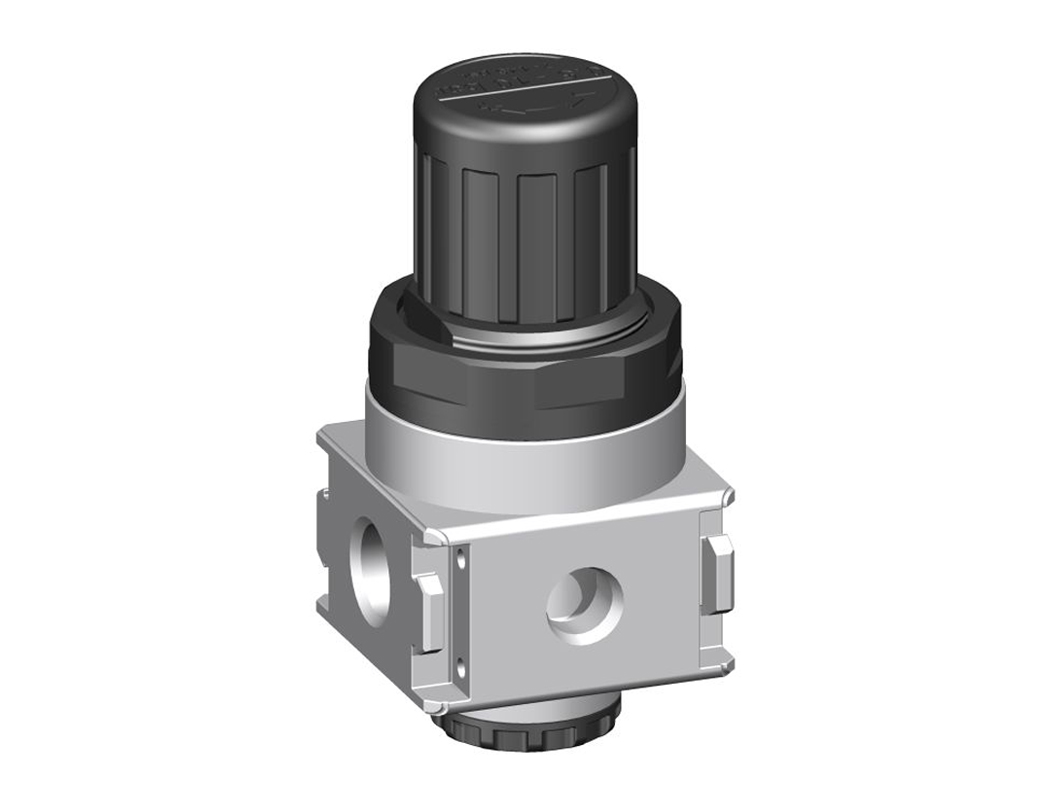

Pressure regulator with continuous pressure supply G1/4 0,5-10 and panel mounting ring

Article number: 033591

Type: RB.01-10-S

Series: Multi-Fix

Connection: G 1/4

Construction size: BG0

Flow: 1700 l/min

Input pressure P1 max.: 16 bar

Medium: Compressed air, neutral gases

Control range P2 max.: 10 bar

Temperature area: -10 °C - +60 °C

Continuous P supply: yes

I-Controlled: no

Pressure gauge: no

Panel nut: yes
